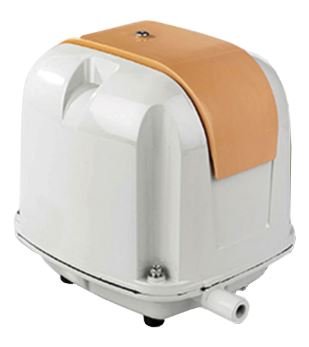

Air Pump/Pompa Aerator Yasunaga AP Series

Description

Air Pump/Pompa Aerator Yasunaga AP Series Type:

Air Pump/Pompa Aerator Yasunaga AP Series Sizing:

AP Series Yasunaga Specs Graph

AP Series Yasunaga Air Pump Specs Graph

Spesifikasi Teknis Yasunaga Air Pump AP Series

	AP-30	AP-40	AP-60	AP-80	AP-100	AP-120
Voltage (V)	AC 230	AC 230	AC 230	AC 230	AC 230	AC 230
Frequency (Hz)	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz
Rated Pressure (kPa)	12	12	15	15	20	20
Input Power (W)	25	29	35	51	99	128
Rated Flow (I/min)	30	40	60	80	100	118
Outlet Dia. (mm)	⌀18 (VP 13)	⌀18 (VP 13)	⌀18 (VP 13)	⌀18 (VP 13)	⌀18 (VP 13)	⌀18 (VP 13)
Mass (Kg)	4.3	4.3	4.7	4.7	6	6
Noise Level (dB) -1m	32	34	38	38	41	41

Buttom Drain
The basal water circulation pathway goes into the filter
The air bubble is placed on top of the drain buttom, which can be used as:
     - Helps to maximize the fuction of buttom drain
     - Increase the level of O2 into water and encourage the release of CO2 into the air
     - The higher level of O2 in the water can increase the population of fish
Using a lifted pump system, water is returned to the pool, by placing air bubbles inside a vertical pipe
